Product Details
Place of Origin: China
Brand Name: DaLi
Certification: CE
Model Number: LLDPE/LDPE/PE three layers stretch film/cling sheet
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: 100000--180000 USD Per Set
Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !
Delivery Time: 2-3 months
Payment Terms: T/T
Supply Ability: 5 sets per month
Name: |
Three-layer Co-extrusion Stretch Film/ Cling Film Machine |
Layers Of Film: |
Three Layer |
Screw Speed: |
150 R/min |
After Sale Service: |
Video Technical Support, Free Spare Parts, Field Installation, Commis |
Voltage: |
380V 3P/50HZ, It Can Be Customized |
Power(w): |
130KW |
Screw Design: |
Triple Screw Extruder |
Diameter Of Screw: |
Φ65×30:1 X2;Φ90×30:1 X1 |
Max Extrusion: |
150-200KG/h |
Thickness: |
0.001mm--0.05mm |
Width Of Film: |
1500mm |
Dimension(l*w*h): |
7.5mx3mx3.4m |
Output: |
3T--5T/24 Hours |
Name: |
Three-layer Co-extrusion Stretch Film/ Cling Film Machine |
Layers Of Film: |
Three Layer |
Screw Speed: |
150 R/min |
After Sale Service: |
Video Technical Support, Free Spare Parts, Field Installation, Commis |
Voltage: |
380V 3P/50HZ, It Can Be Customized |
Power(w): |
130KW |
Screw Design: |
Triple Screw Extruder |
Diameter Of Screw: |
Φ65×30:1 X2;Φ90×30:1 X1 |
Max Extrusion: |
150-200KG/h |
Thickness: |
0.001mm--0.05mm |
Width Of Film: |
1500mm |
Dimension(l*w*h): |
7.5mx3mx3.4m |
Output: |
3T--5T/24 Hours |

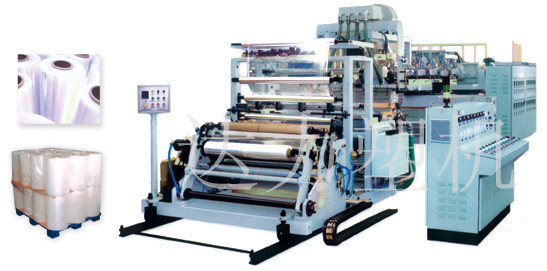

. Cast Stretch Film Machine Triple Screw Plastic Extruder is the automatic All-in-one model which is designed according to the advanced technology from domestic and foreign markets, with auto cutting, auto laps changing apparatus and auto PLC system..
Material |
LDPE/LLDPE |
Working width |
1500mm max |
Thickness range |
0.012mm to 0.05mm |
Screw Dia. and L/D |
Φ65×30:1 X2;Φ90×30:1 X1 |
T die width | 1850mm |
Substrcture of Layer | Three layers ABC |
Actual comsumption of power(KW) | 70 KW per hour |
Power supply | Three Phase 380V( ±10% )50hz, Single Phase 220V50Hz |
Mechanical speed: | 200m/min |
Extrusion capacity | 150~200kg/h(varies with material) |
Installation power(KW) |
About 140kw ( actual consumption is 40%-50% of total installation power) |
Installation space |
L=7.5M; W=3m; H=3.5m
|
Scene of assmebly workshop
