Home > products > Lamination Film Production Line > POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process

POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process

Product Details

Place of Origin: China

Brand Name: DaLi

Certification: CE

Model Number: DL-2300

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: 100000--180000 USD Per Set

Packaging Details: Regular Packing with blanket and stretch film or customized requirment package !

Delivery Time: 2-3 months

Payment Terms: T/T

Supply Ability: 5 sets per month

Get Best Price
Highlight:

1600MM T Die Pla Extrusion Lamination Machinery

,

1600MM T Die Pla coating laminating machinery

,

1600MM T Die PE Laminating Machine

Name:
Car Mat /floor Mat Laminating/Coating Machine
Plastic Processed:
LLDPE/LDPE/POE/
Application:
Sheet/ Film
Material:
Granule
Voltage:
380V 3P/50HZ
Power(w):
120--220 KW
Screw Design:
Single Screw Extruder
Certification:
CE
Usage:
Laminating On The Substrates
Thickness:
0.015mm--0.1mm
Weight:
18T
Dimension(l*w*h):
12.5mx4.5mx3.5m
Output:
2.5T--4T/24 Hours
Name:
Car Mat /floor Mat Laminating/Coating Machine
Plastic Processed:
LLDPE/LDPE/POE/
Application:
Sheet/ Film
Material:
Granule
Voltage:
380V 3P/50HZ
Power(w):
120--220 KW
Screw Design:
Single Screw Extruder
Certification:
CE
Usage:
Laminating On The Substrates
Thickness:
0.015mm--0.1mm
Weight:
18T
Dimension(l*w*h):
12.5mx4.5mx3.5m
Output:
2.5T--4T/24 Hours
POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process

Automatic cutomized Car mat /floor mat Laminating/Coating Machine

Car Mat & Interior/Carpet Laminating Production​ Line (Model DALI 1400--2800)



  • Overal view of the production line



   This production line fully absorbs and combines with the laminating compound, and optimizes the design of products such as floor mats, foot pads, roof cloths, and carpets, with stable quality and powerful functions.

Surface of lamination can be textured according to customers’ requirement.
The final products can be used in a variety of car interior, household and so on.
Processing Flow:
Unwinding---Extrusion---Calandering---Trimming---Pulling---Rolling or Slitting

  • Full detaied of specifcations:



Material

PE,EVA,TPR,PP,and other granule



Working width

1600--2500mm max



Thickness range

0.015mm to 0.1mm



Screw Dia. and L/D

Φ90---130×33:1 X1
T die width 1600---2800mm
Roller surface length 1600--2800mm
Winding Diameter Φ600
Power supply  3P,480V( ±10% ) 60Hz, Single phase, 120V 60Hz
Mechanical speed: 20-80m/min
Extrusion capacity(Maximum) 100~250kg/h(varies with material)



Installation power

About 120--160kw ( actual consumption is 40%-50% of total

installation power)

Installation space

L=12.5M; W=4.5m; H=3.5m





  • Processing flow:

Unwinding ⇒Extrusion ⇒Laminating⇒Trimming⇒Pulling⇒Slitting or Rolling

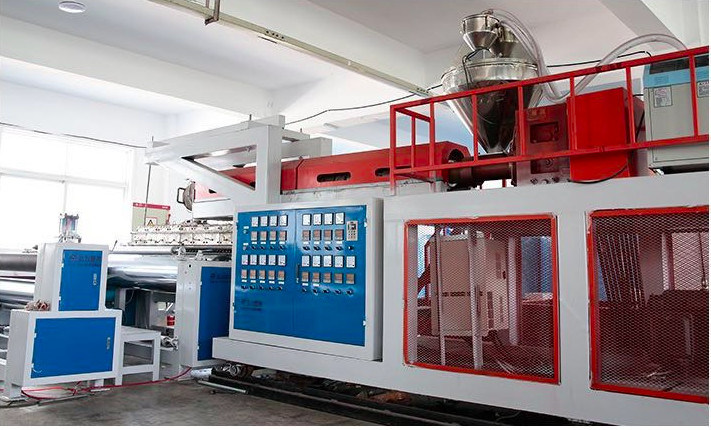

Scene of assmebly workshop

POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 0





POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 1



POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 2

  •
  • Showcase of the assmebly workshop

POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 3





  • Aplication of the products

POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 4



  • Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages

     according to customer's request.





POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 5

POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 6



  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.



     Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.





POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 7

Certification

POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 8



Scenarions of busineess negotiation



POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 9

POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 10



Our Client representatives:



POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 11

POE Pla Extrusion Lamination Machine 1600MM T Die Adhesive Lamination Process 12

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

      Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

      employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.



FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3.  What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
