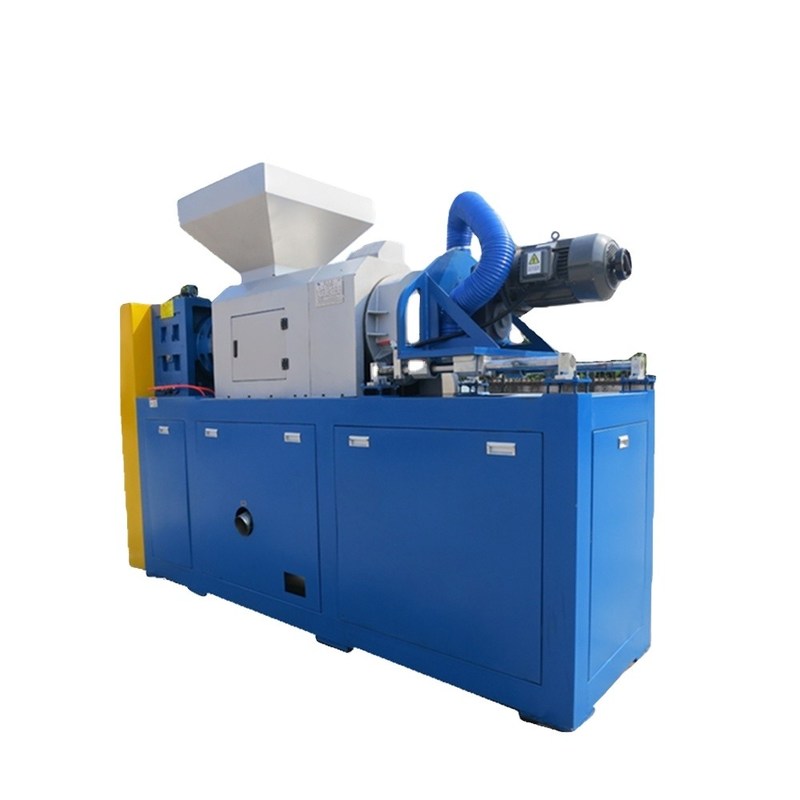

Polymer Granule Plastic Compounding Machine 100kg/H

Product Details

Place of Origin: Jiangsu.China

Brand Name: Dali

Certification: CE

Model Number: DL-100

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: USD2500 /set

Packaging Details: Wooden case

Delivery Time: 1-2 months

Get Best Price
Highlight:

Polymer plastic compounding machine

,

Granule plastic compounding machine

,

100kg/h plastic compounding extruder

Material:
PP Or PE
Recycle Width:
20-30mm
Motor Power:
3kw
Capacity:
100kg/h
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Screw Design:
Double Screw
Material:
PP Or PE
Recycle Width:
20-30mm
Motor Power:
3kw
Capacity:
100kg/h
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Screw Design:
Double Screw
Polymer Granule Plastic Compounding Machine 100kg/H

Polymer Granule Making Plastic Extruder Granules Compounding Machine



--- Excellent mixing performence.

--- Good self-cleaning performance.

--- Flexible modular configuration characteristics.

--- Designed by using the 'toy bricks" principle.

--- Can make the plastic extrusion machine changed according to the materials properities and process technology easily.

--- Possible for one machine reach the extensive performance and special purpose in many places.



Usagese:

Main Application: Applied for the processing of CPE, PE, CPP, PO, PP, PET, PA and other waste film materials, substandard products, edge materials and high ratio mixing with raw materials.
The machine design has good reliability, maintainability and stability, can produce good economic benefits.


☆ The structure:
The machine consists of the following components: motorized mechanism, feeding mechanism, feeding device, transmission system and cutting components.


The working principle:
1, with the filmmaking machine linkage: filming machine membrane process, the expelled film scrap is immediately fed into the pelletizing machine feeding mechanism, the feeding mechanism will feed the material feeding device, the irregular scrap is pressed into a neat band Pattern, transmitted by the transmission system to shear components, cut into pieces of granular debris, to complete an instant recovery.
2, for slitting machine: the cutting edge of the cut material, orderly roll to the core, the volume sent to the granulator for granulation.


The main technical parameters:

Material PE or PP edge film
Edge film width 20-30MM
Edge film thickness

max 0.1mm

Cutting motor 3kw
Output 100-150kg/h
Speed max 100m/min
Machine dimensions 650x580x1260mm
Machine weight 400kgs
